Home » Products » 3D Scanner » 3D Scanner

3D Scanner

3D Scanner
3D Scanner
Product Code : 07
Brand Name : 3D GALAXY
Product Description

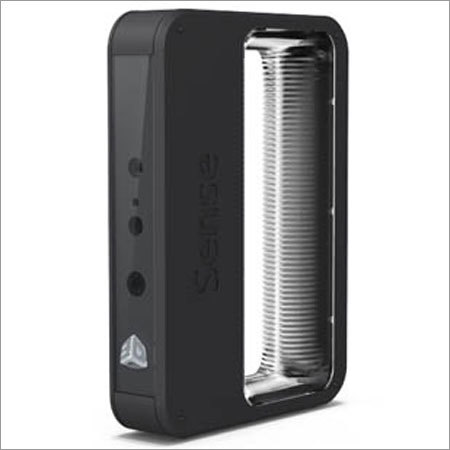

3D Scanner is a Cubify Sense 3D Scanning device that analyzes an actual-globe object / environment in order to gather information on its form and possibly its appearance that is colour. After that, the collected data can be utilized to built digital 3D models. Such device shares various traits with cameras. Like the most of cameras, it has a cone-kind field of view, and like cameras, it can only gather data about surfaces that are not uncleared. While a camera gathers colour data about surfaces within its field of view, such scanner collects distance data about surfaces within its view's field. The picture generated by this 3D Scanner narrates the length to a surface at each & every point in the image. This allows the 3-D position of each point in the image to be identified.

Other Details:

  • Instant capture all of the physical measurements of all kind of physical object
  • Saves time in design task
  • Assure that parts will get fitted together on the first try
  • Capture engineering optimizations built-in in produced components.
  • Utilizing advanced production technique on parts that were really designed before CAD
  • It compares "as-designed" model to "as-built" condition of produced parts
3d model Scanning Details:
  • Enhance effectiveness functioning with complex parts & shapes.
  • Support with design of products to put up someone else's part.
  • If CAD models are out of date, a 3D scan will offer an up-to-date version
  • Replacement of older or missing parts
Area Used:
  • Obsolete / Reverse Engineering / Prototype parts
  • Inspection / QC
  • Art / Reproductions
  • Movies / TV / Games
  • Historical Artifacts
  • Architectural / Construction
  • Medical / Dental
  • Marine
Specification:
  • Supported operating systems are Windows 10 : 64-bit
  • Dimensions : 17.8 cm x 12.9 cm x 3.3 cm
  • Scan volume : Min: 0.2 m x 0.2 m x 0.2 m to Max: 2 m x 2 m x 2 m
  • Maximum power consumption : 5.0 VDC
  • Depth image size : 640 px (w) x 480 px (h)
  • Operating range Min: 0.45 m to Max: 1.6 m
  • Spatial x/y resolution : n0.5 m 0.9 mm
  • Operating temperature : 10 oC - 40 oC
  • Depth resolution : 0.5 m 1 mm
  • Data interface : USB 3.0
  • Maximal image throughput : 30 fps
  • USB cable length : 200 cm
  • Color image size : 1920 px (w) x 1080 px (h)
Field of view :
  • Vertical: 57.5o
  • Horizontal: 45o
  • Diagonal: 69o
Minimum Hardware Requirements:
  • RAM : 4 GB
  • CPU : 2GHz
  • Available hard disk space : 2 GB
  • Screen resolution : 1280 x 1024
Trade Information
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
